Wesleynet.com Thailand E Catalogue

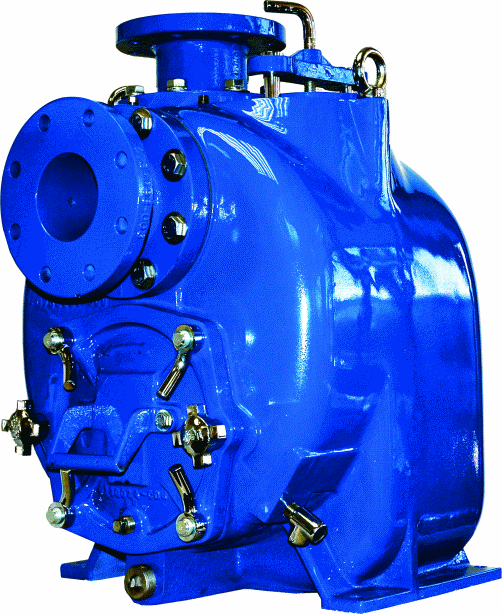

Available size 3’’ to 10”
Head up to : 39 M
Flow up to : 725 m3/hr
Solids size up to : 3 inch
Material : Cast Steel, High Chrome or CD4MCu Impeller
Stainless Steel 17-4PH Shaft

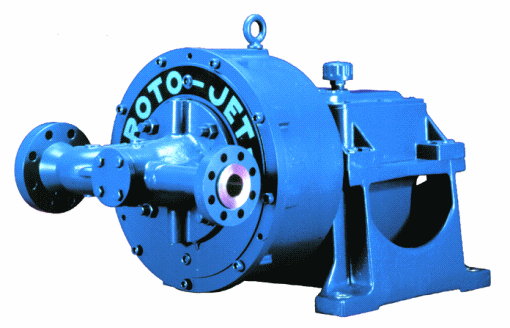

Model RO® Pump (API available)

Capacity: to 450 gpm (109 m/hr)
Heads: to 5200 ft. (1585 m)
Pressures: to 2250 psi (155 Bar)
Temperatures: to 550 oF (288 oC)
Maximum Speed: 6321 RPM

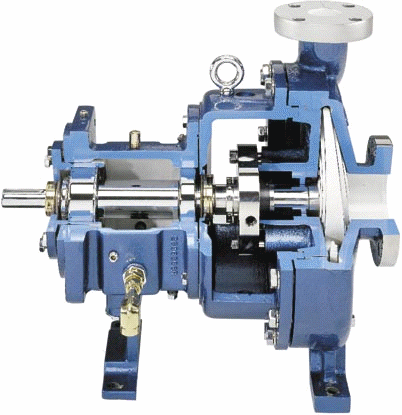

Heavy Duty Process Pump (ANSI B73.1 STD)

Capacities: .............. Up to 4500 gpm (1022 m3/hr)
Head: ......................... Up to 730 feet (222 meters)
Pressure: ................. Up to 375 psi (2586 kPa)
Horsepower: ........... Up to 300 hp (224 kW)
Temperature: .......... Up to 500 oF (to 260oC)
Drives: ....................... Motors, engines, steam turbine
Liquids: ..................... Chemical, pulp and paper, all process
Materials: ................. Ductile Iron, 316SS, CD4MCu, 317SS, Nickel, Alloy 20, Hastelloys, Zirconium, Titanium

Maximum total head (m): 80
Maximum Capacity (l/m): 1100
Maximum operating temp. (oC): 280
Maximum viscosity (cP): 300
Maximum SG : 2.0
Flange standard : ASME150LB RF, JIS 10K RF
Pump material : SCS13 (SUS304), SCS14 (SUS316), Alloy 20

Large size standard centrifugal magnet drive pump

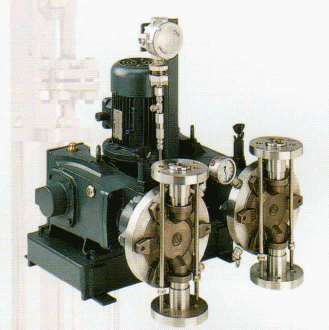

API Metering Pump

Reciprocating plunger and diaphragm process pump.

Designed to solve with the highest reliability and precision any problem associated with metering applications single acting for all models, double acting for piston type pumping head only

Piston Pump with heating jacket.

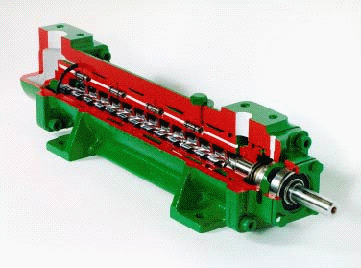

IMO US POSITIVE DISPLACEMENT 3- SCRE PUMP

Flow rates up to 795 m3/h

Typical pump discharge pressure to 345 bar

Temperature up to 260 degree C

Fluid viscosity from 1.6 to 5,400 cSt

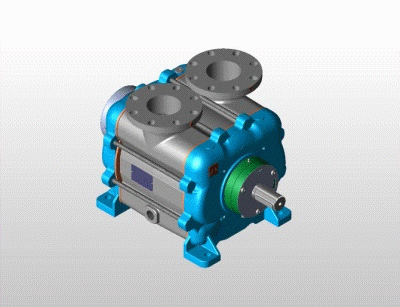

TRAVALNI Liquid ring Vacuum pump,

:TRH-TRS Model Standard

: TRMB Mono block

: TRVX Liquid ring Vacuum pump (New Model)

: Hydrosys Vacuum Skids

Flow rate : up to 3500 m3/Hr

Max Vacuum : 33 mBar

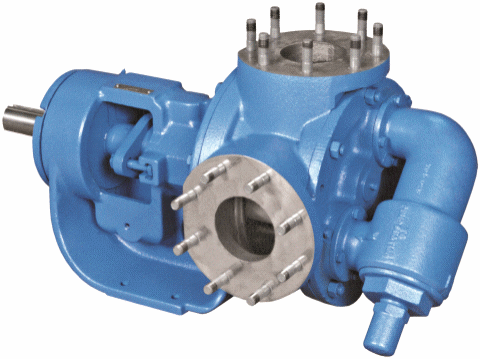

VIKING® - GLOBAL LEADER IN POSITIVE DISPLACEMENT PUMP –USA.

- Strong knowledge with over 100 years of expertise

- With 4 leaders in PD pump technologies – Internal Gear, External Gear, Rotary Vane and Industrial lobe

- Size available from ¼” to 10” that can handle max. capacity up to 365m3/hr (1600GPM)

- Capable of handling viscosity from 28 to 2,000,000 SSU (1 to 440 cSt)

- Reliability, Quality, Performance and Simple maintenance

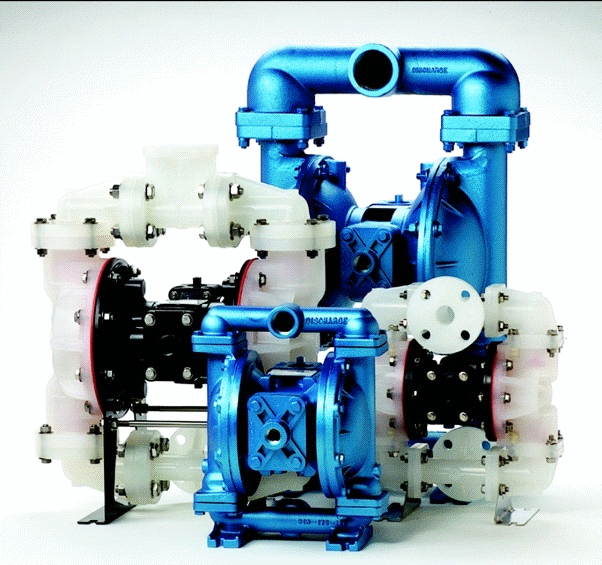

SANDPIPER® - AIR OPERATED DOUBLE DIAPHRAGM PUMP –USA.

- Sealless, Self-priming pump and can run dry without damage

- With signature pump configurations, our pumps can handle solids up to 3” line size

- Size available from ¼” to 3” with variable pump material and elastomers

- ESADS+Plus® - In-line serviceable air valve system

- Bolted construction, Safe, Reliable and Easy maintenance
